Mac Studio Rack Mount 19 inch

FRONT SLIDING!

For 1 Mac Studio & 1 Mac mini 2023 M2 & M2 Pro

Fits M1 and M2 Mac Studio!

Fits Mac mini's from model year 2011-2023

(2011 - 2012 - 2014 - 2018 - 2020 - 2020 M1 chip - 2023 M2 & M2 Pro)

(Not for new 2024 Mac mini M4 M4 Pro)

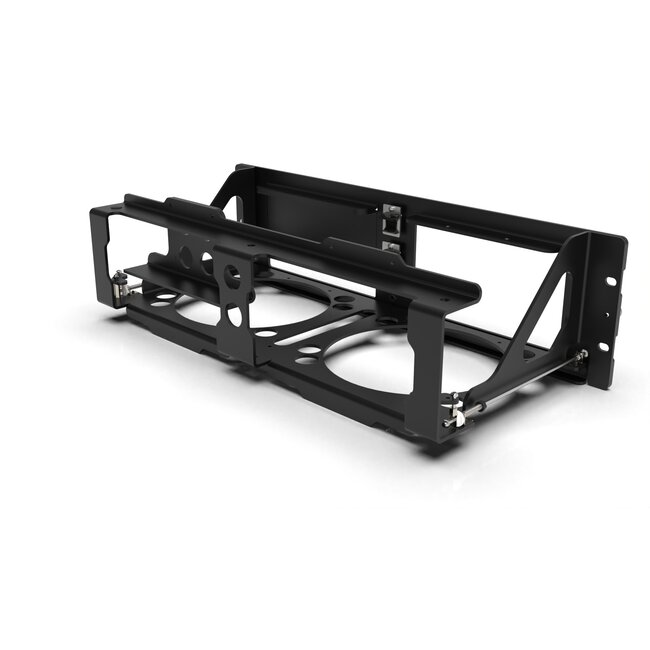

Mount 1 Mac Studio and 1 Mac mini in a 19 inch rack with our brand new 3U Mac Studio / Mac mini rackmount.

Important detail is that the special construction allows the Macs to be pushed in and out from the front. Even if the rack mount is already mounted in the 19-inch rack!

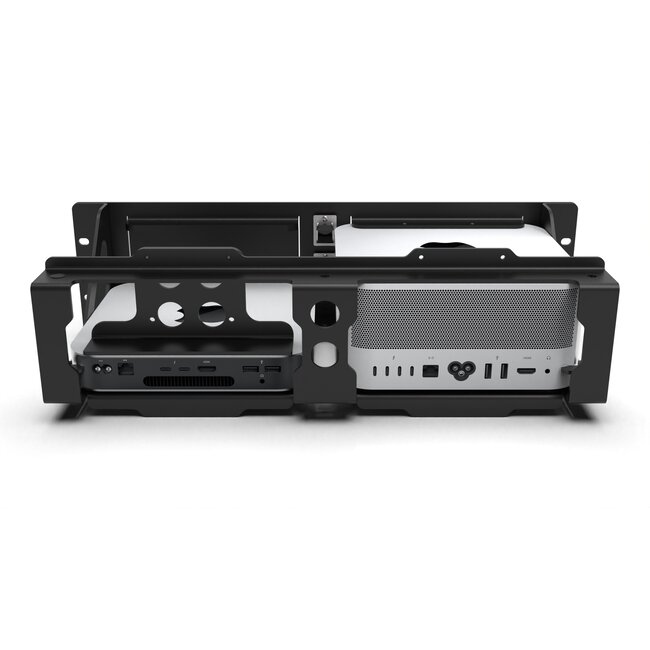

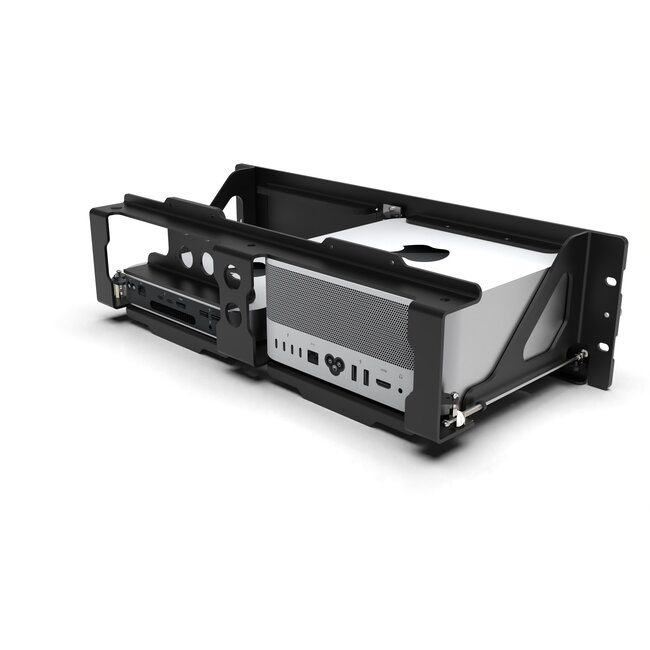

Put your (old and faithful or brand new M2) Mac mini next to the Mac Studio!

What comes with the standard delivery?*

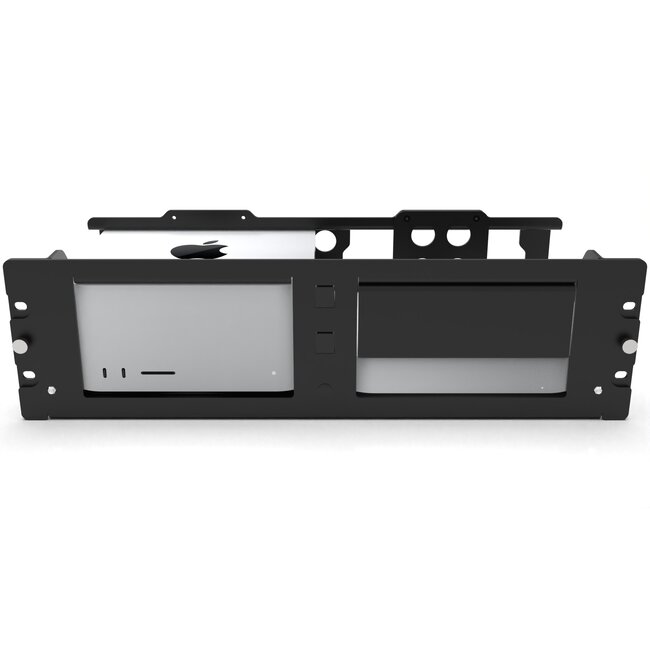

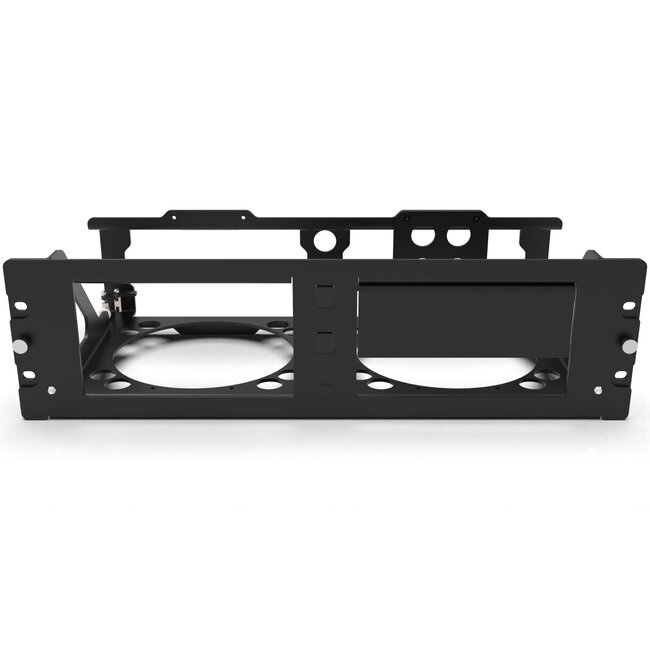

Two special power buttons are fitted as standard in the front panel. This allows you to switch on/off the Mac Studio and the Mac mini from the front panel.

Connector types

The following types of connectors can be ordered optionally for the 2 connector slots in the middle of the front plate (standard these 2 slots have a blank cover):

• LAN CAT.6A (art.nr. 6563)
• USB3.0 (art.nr. 6517)
• HDMI (art.nr. 6564)
• HDMI 2.0 (art.nr. 6776)
• Audio Jack (art.nr. 6568)

Sizes of the Mac Studio / Mac mini rack mount:

• Depth: 214 mm
• Width: 483 mm (19”)
• Height: 132,5 mm  (3U)
• Material: Aluminum!
• Weight: 1375 gram (3.03 lb)

Extra functionality

The two slots are both configured with a power button assembly. Left side for the Mac Studio, right side for the Mac mini. And the good thing is that the second slot can be converted to a Mac Studio slotas well. With this Mac Studio Rack Mount all 3 options are included:

• 1x Mac Studio and 1x Mac mini (conversion by customer)
• 1 Mac Studio and 1 slot with a blank cover
• 2x Mac Studio (needs some conversion work by customer)

This 6881 version is pre-configured for 1 Mac Studio and 1 Mac mini

*We offer the Mac Studio Rack Mount in two pre-configured options:

• 6880: Pre-configured for 1 or 2 Mac Studios. (blank cover included)
• 6881: Preconfigured for 1 Mac Studio and 1 Mac mini. (blank cover included)

The difference is mainly the position of the second (right) power button. Mac Studio and Mac mini have different orientations of the power button. But all the parts are included. You can convert your Mac Studio Rack Mount to any version, whatever your initial configuration was when you bought it.

13 January 2023: FIND OF THE WEEK!

See what Pro-Tools-Expert think of our Mac Studio Rack Mount

** This product weighs too much and is too big to ship with PostNL. Shipping with FedEx/DPD only.
